ELECTRIC MECHANICAL ACTUATORS
Thomson manufacture a premium range of actuators with many design features to cover most electric actuating solutions with a range of voltages and electrical and mechanical smarts coupled with a heavy duty industrial design.
We can offer a range of strokes from 25 to 1000mm as standard plus the ability to manufacture specials and prototypes.

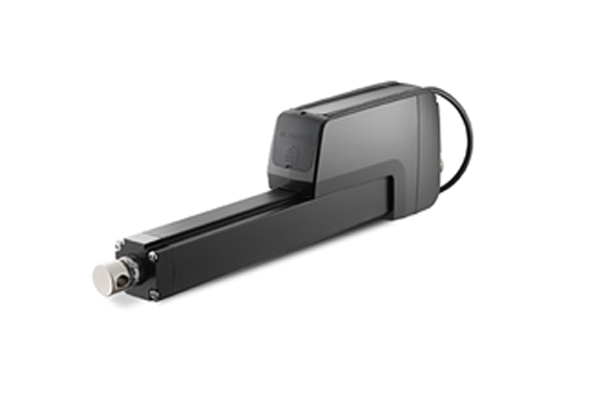

NEW THOMSON HD SERIES ACTUATOR
The latest product development from Thomson USA is now available in Australia.
The HD actuator has a range of features that provide a superior performance actuator; this is due to a platform of on-board electronics with options which can eliminate the need for standalone controls, higher power and no compromise between load and longer strokes.

    The key features of this actuator
  • Environmental protection – up to 1P69
  • Integrated manual override
  • Thermal overload protection
  • Inbuilt safety nuts
  • High efficiency and long life ball screw
  • Industry leading on board control options
  • No ongoing maintenance
  • Stroke from 100 to 1000mm
  • 5 force/speed options, up to 1000 kg
  • Plus many more features

Electrak E050
The Electrak E050 actuator is the new compact, quiet, low priced actuator suitable for a variety of markets and applications. This actuator has a very short retracted length for applications
where space is a premium.

Features

  • Quiet
  • Built in limit switches for end of stroke protection and a clutch for mid
    stroke protection
  • Breather tube in the wiring harness to allow the actuator to operate
    without drawing water

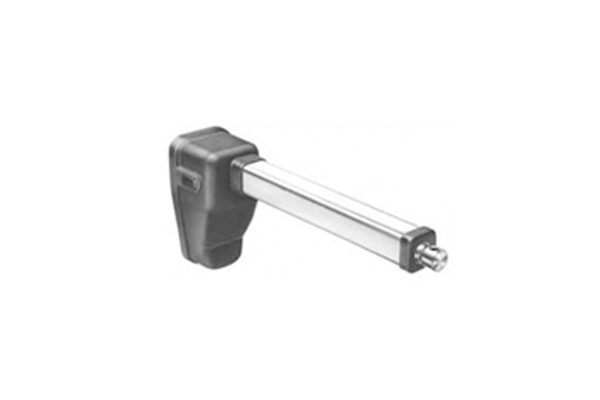

Electrak E150
A low cost quiet actuator with different speed and load ranges. The optional limit switches are designed to operate with fewer parts. The plastic cover is designed to be recyclable, and the anodized aluminum cover tube is corrosion resistant.

Features

  • Low cost
  • Quiet operation
  • Optional adjustable limit switches
  • IP-56 rated for outdoor use

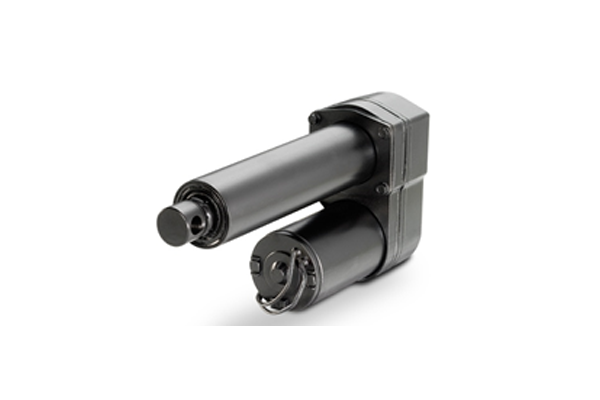

Electrak 10
This model incorporates a ball bearing screw drive system for applications requiring maximum load capacity. A specially designed anti-back driving brake holds tension or compression loads
in position when the actuator is not in use.

Features

  • Clevis mounting
  • Protective seal
  • Sturdy steel cover tube
  • Ball bearing screw drive systems
  • Overload clutch
  • 4, 8 or 12” stroke lengths
  • Stainless steel extension tube
  • Rugged spur gearing
  • 12 or 24 VDC
  • Lifetime lubrication of gears
  • Thermal overload protection

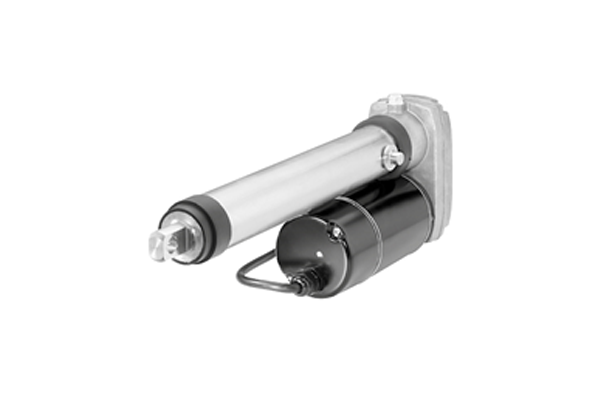

Electrak PPA/ACDC
Robust heavy duty actuator, which features some of the longer strokes available in the standard range.

Features

  • Strong and versatile heavy duty actuator
  • High duty cycle
  • Highly efficient ball screw drive system
  • Overload clutch for mid and end of stroke protection
  • Stroke lengths up to 36 inch
  • Motor with thermal switch
  • Maintenance free
  • Large range of options

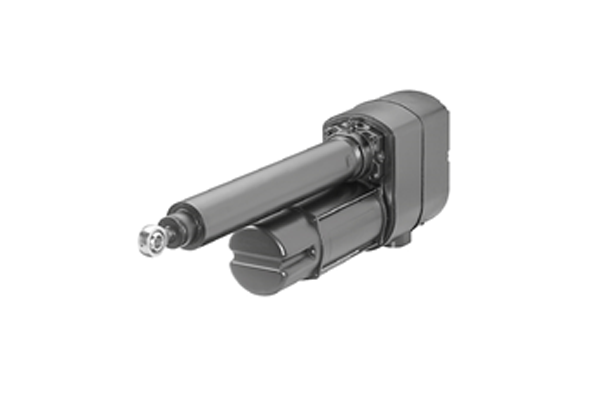

Electrak 205
Features a potentiometer for precise positioning feedback. Available in 115 & 230 VAC with excellent environmental protection.

Features

  • Robust, strong and reliable
  • Stainless steel extension tube
  • Highly efficient ball screw drive system
  • Electrical brake for accurate positioning
  • Durable, lightweight, plastic housing
  • Available DC voltages: 12 or 24
  • Estimated life at rated load is 40,000 cycles minimum

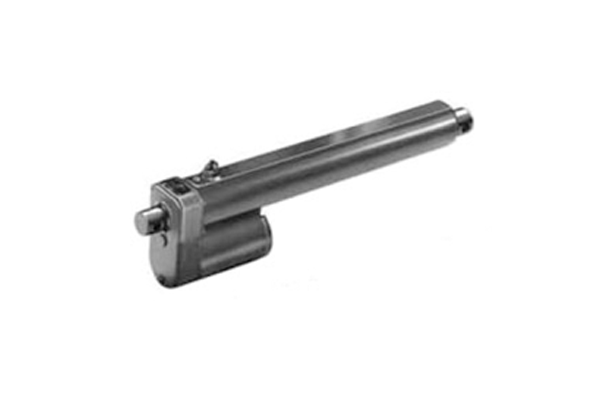

Electrak 1
Completely self-contained and sealed for indoor and outdoor use, Electrak 1 actuators fit into small areas without sacrificing reliability. The load/ length configurations available cover a diverse range of intermittent duty applications.

Features

  • 2, 4, or 6 inch stroke lengths standard
  • Completely self-contained in a compact housing
  • Built in limit switches
  • Aluminum/zinc alloy housing resists corrosion

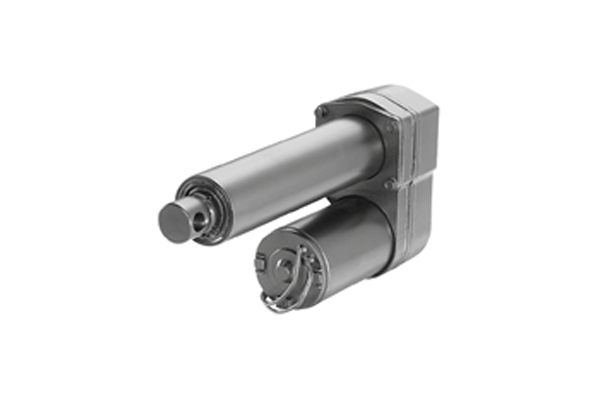

Electrak 2
Economical model designed for relatively light load applications. It incorporates most of the features found in higher priced models.

Features

  • Economical and robust actuator for medium loads
  • Stainless steel extension tube
  • Self-locking acme screw drive system
  • Overload clutch for mid and end of stroke protection
  • Motor with thermal switch
  • Maintenance free

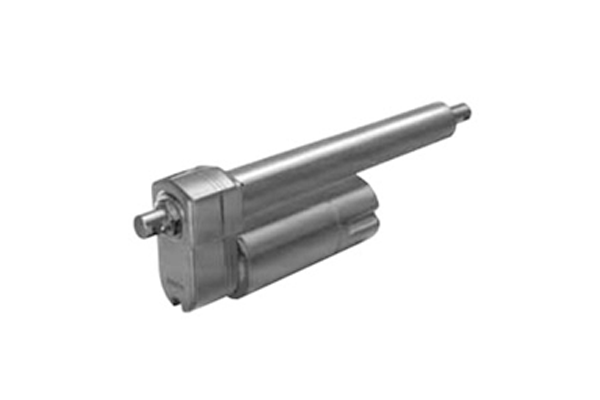

Electrak 5
A general purpose AC actuator, this actuator is designed for intermittent duty applications and provides maximum thrust of 500 pounds or 1000 pounds. Since it is powered by 115 VAC or 230 VAC, the Electrak 5 actuator can be easily wired and can be controlled by a simple pushbutton switch or relay for remote control of hard-to-reach operations such as opening or closing an overhead window.

Features

  • 500, 1000 and 1500 lb. load capacity models
  • New stronger housing
  • Highly efficient ball bearing screw drive system
  • 4, 8, 12, 18, or 24 inch stroke models
  • Load limiting clutch
  • Anti-coast motor brake for accurate positioning
  • Heavy duty 115 VAC 60 Hz only or 230 VAC 50/60 Hz
    single phase motor

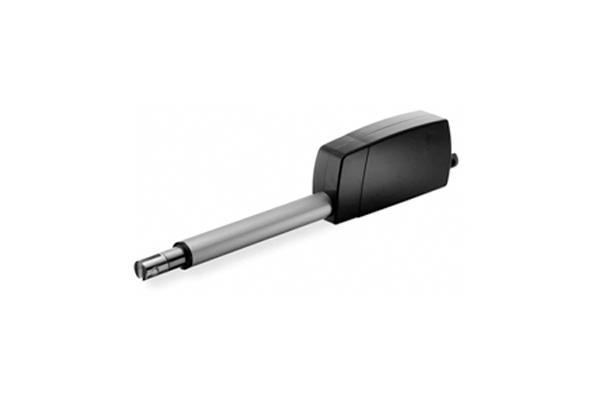

Whispertrak
This strong, quiet electric actuator is a new product in the Thomson range, it’s sleek, compact design requires no maintenance which is perfect for mobility, medical, office and domestic applications

Features

  • Exceptionally quiet
  • Compact and light weight
  • Sealed to prevent damage

PC Series
Thomson PC Series™ electric actuators are designed to deliver superior performance as they are stronger, faster and longer-reaching than other comparable units on the market. The PC Series offers a broad range of accessories and options, including servo motors, making them ideal for virtually any application.

Features

  • Provides market-leading load capabilities
  • Reduces the overall machine cycle time
  • Provides solution for hard-to-reach places
  • Gives greater freedom in the mounting position
